PreVenTest Nexus

In-situ testing of spring-loaded PRVs

Hot and cold testing in process conditions

ASME BPVC Section XIII, ISO & PED compliance

Database includes >4,000 seat-sizes

General Purpose

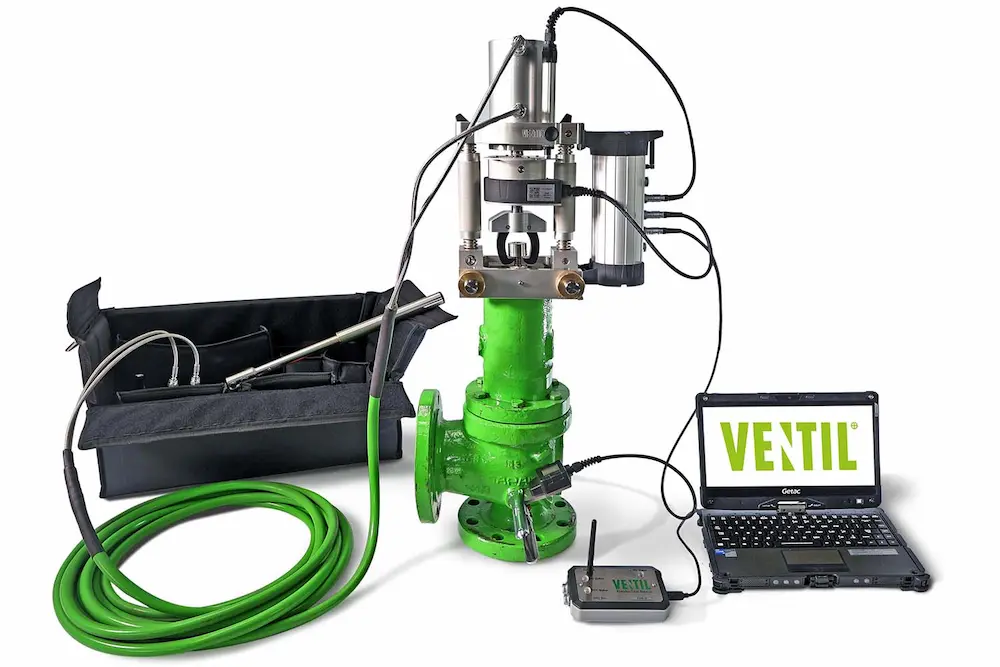

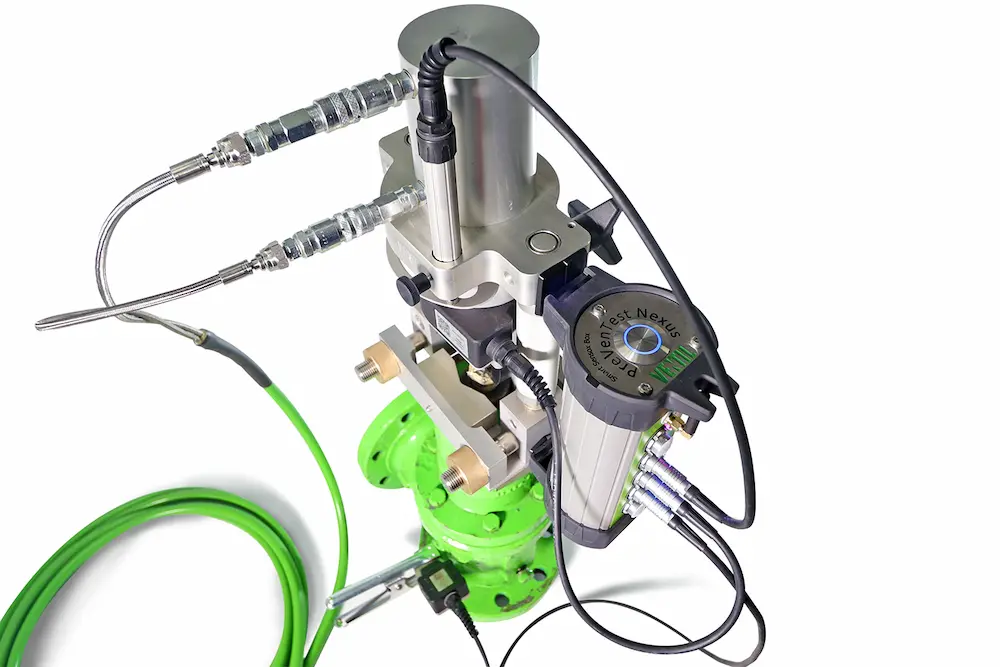

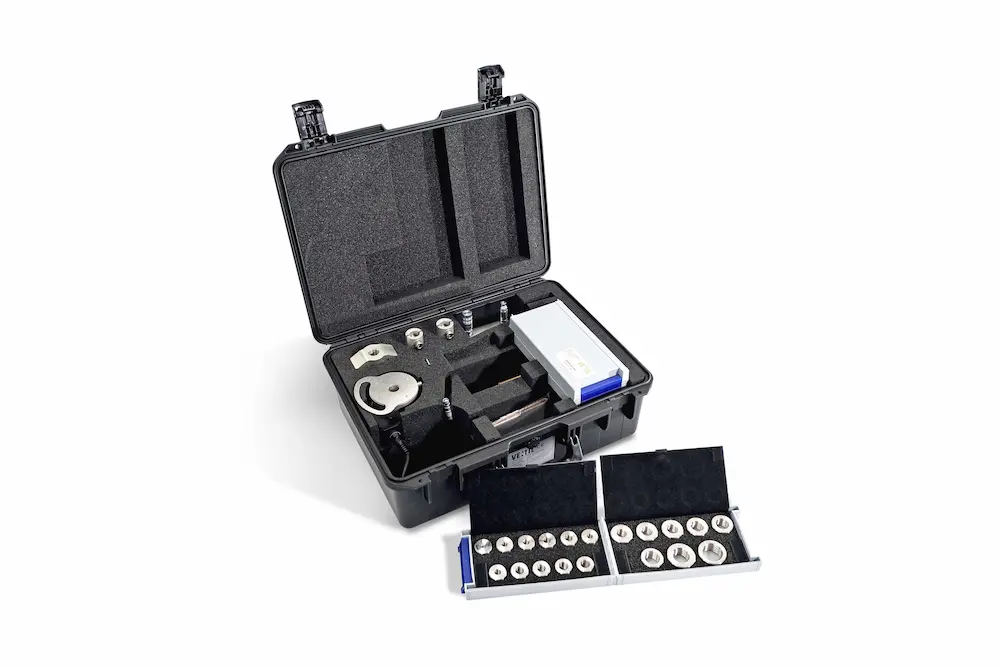

The PreVenTest Nexus Auxiliary Lift Assist Device (ALAD) provides a modern solution for testing spring-operated Pressure Relief Valves in-situ. Suitable for steam, gas and liquid applications, the system combines precision force application, advanced software and a database of more than 4,000 seat-size configurations from leading PRV manufacturers.

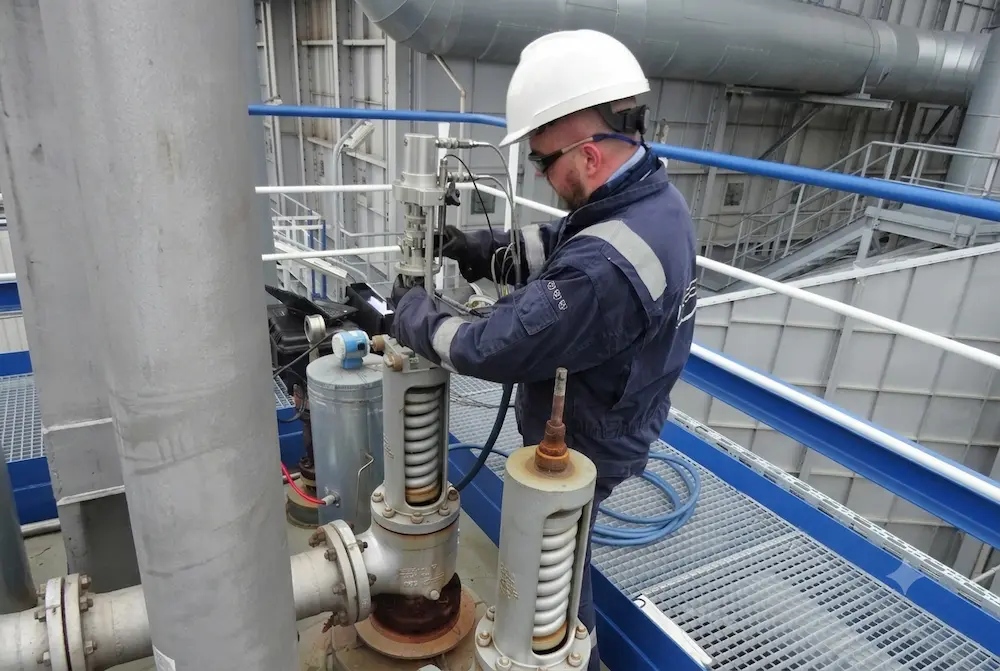

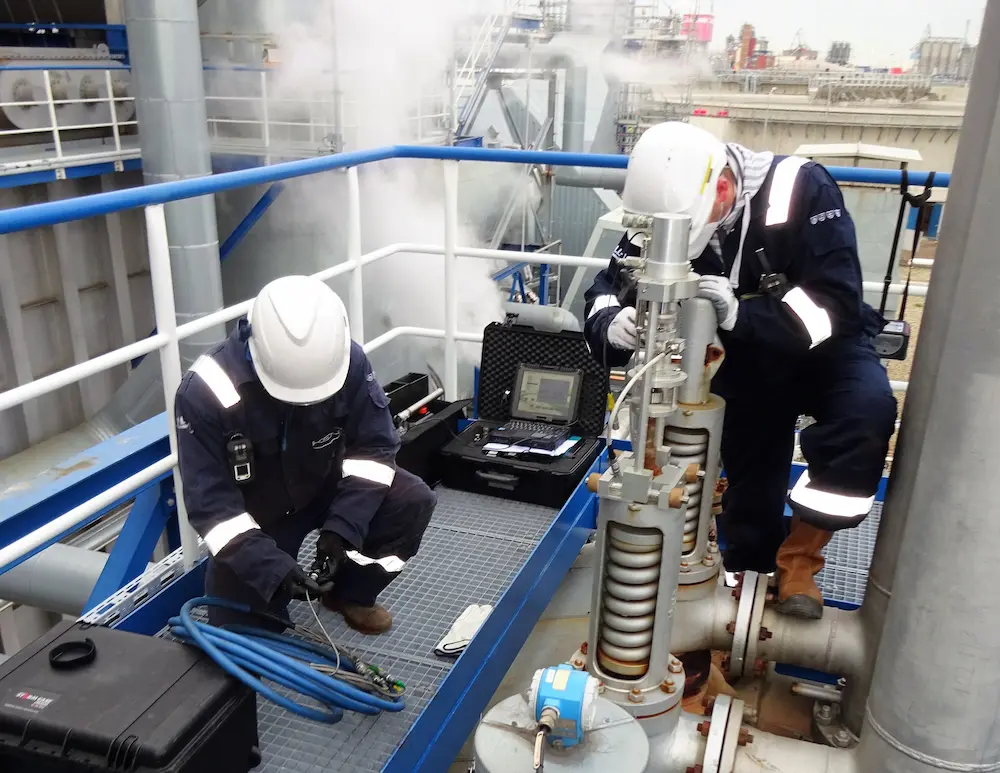

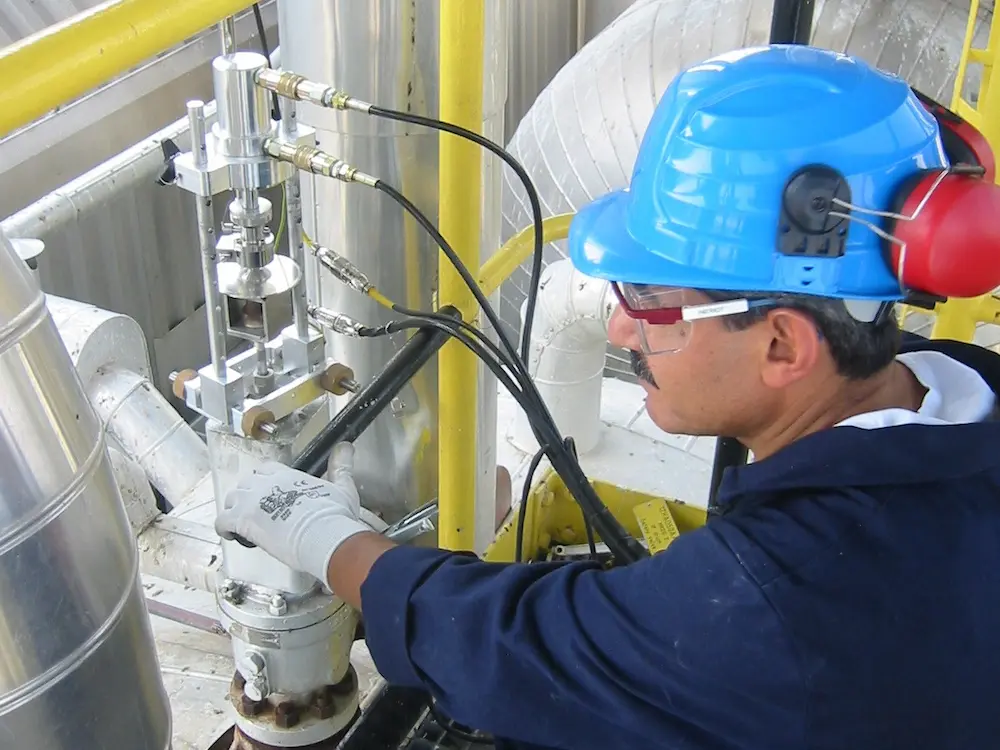

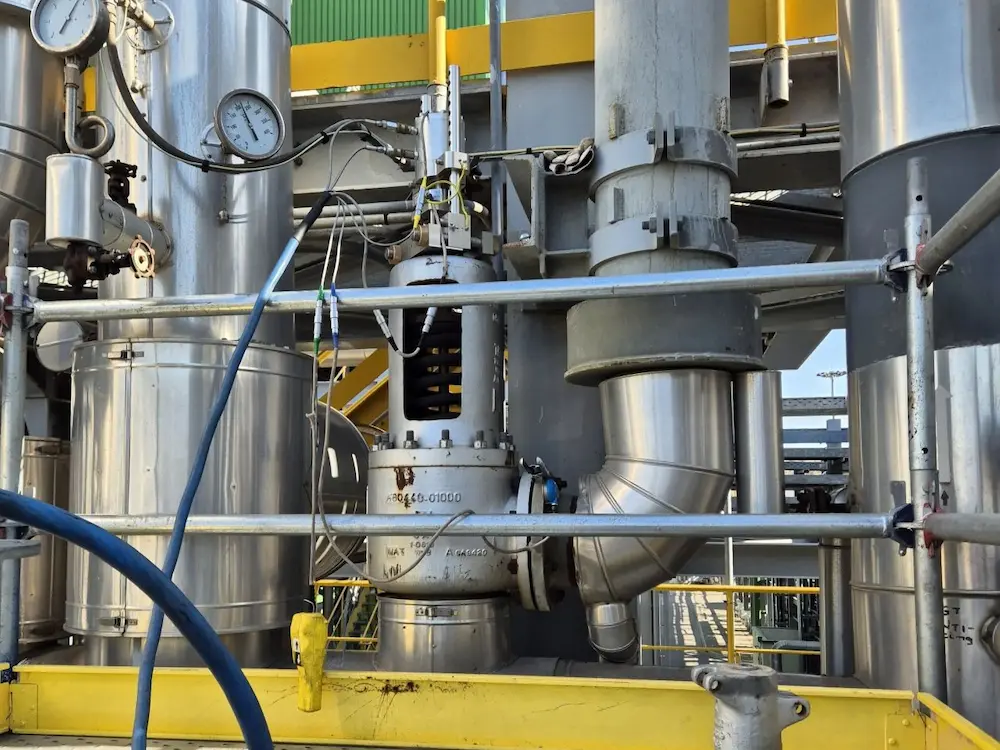

In-situ testing technology is changing this maintenance model by allowing PRVs to be accurately tested while remaining installed. This enables operators to verify valve performance with less disruption, reduced risk and improved efficiency.

Specifications

Size Range: <36" (900 mm)

Max Set Pressure: Up to 400 bar (5,800 psi)

Clamping Force: 50 ton

Test Medium: Gas, Liquid

Test Standards: API 526, API 527, EN ISO 4126, PED 2014/68/EU, ASME BPVC Section XIII

Remarks:

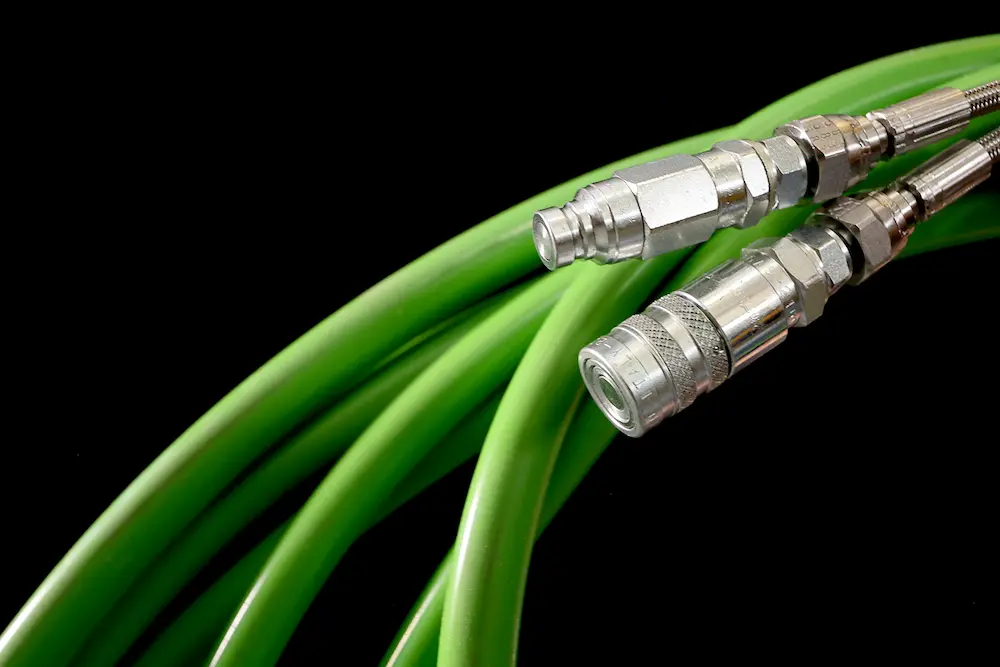

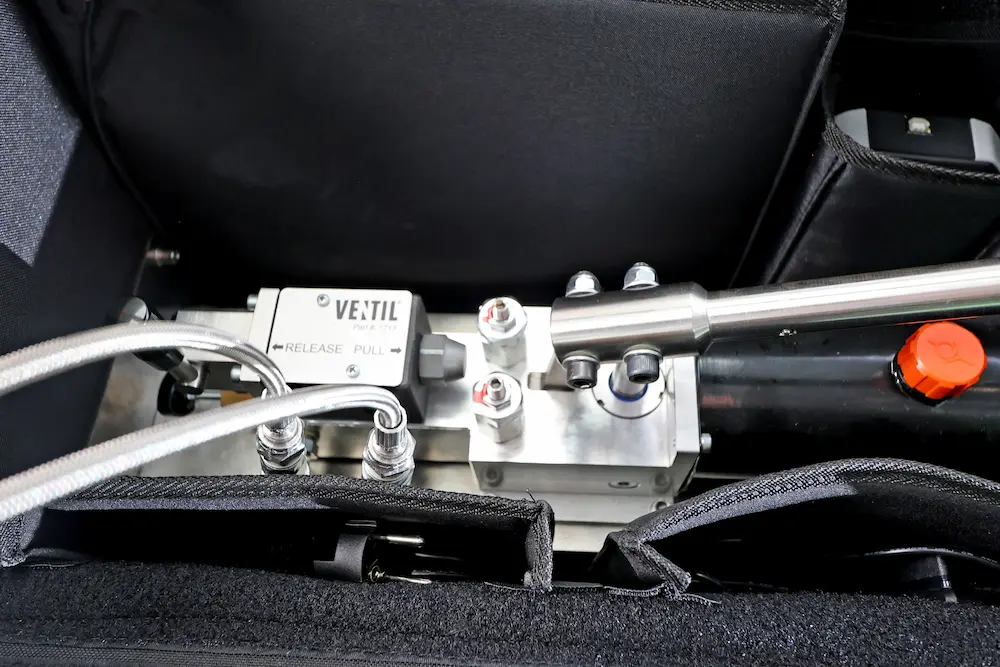

Robust system - hydraulic-operated, battery-driven, fully off-grid
Easy to use - minimal training required; supports multiple languages

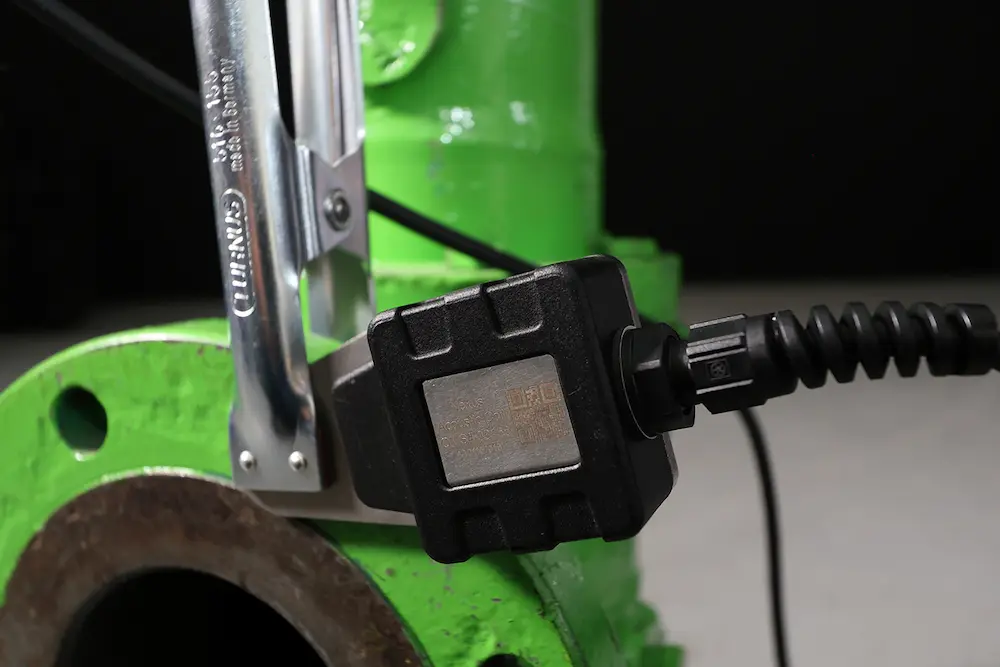

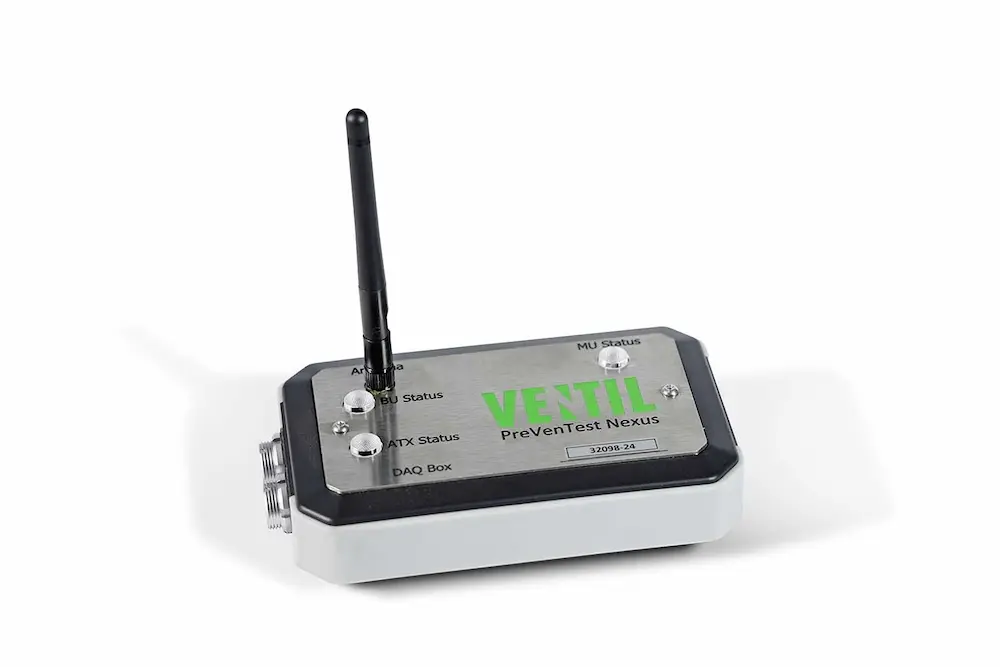

Integrated sensors - digital lift, force and acoustic sensors
Advanced software & database - Tamper-proof, validated, reproducible reports (digital & print)
Versatile deployment - suitable for remote and ATEX environments

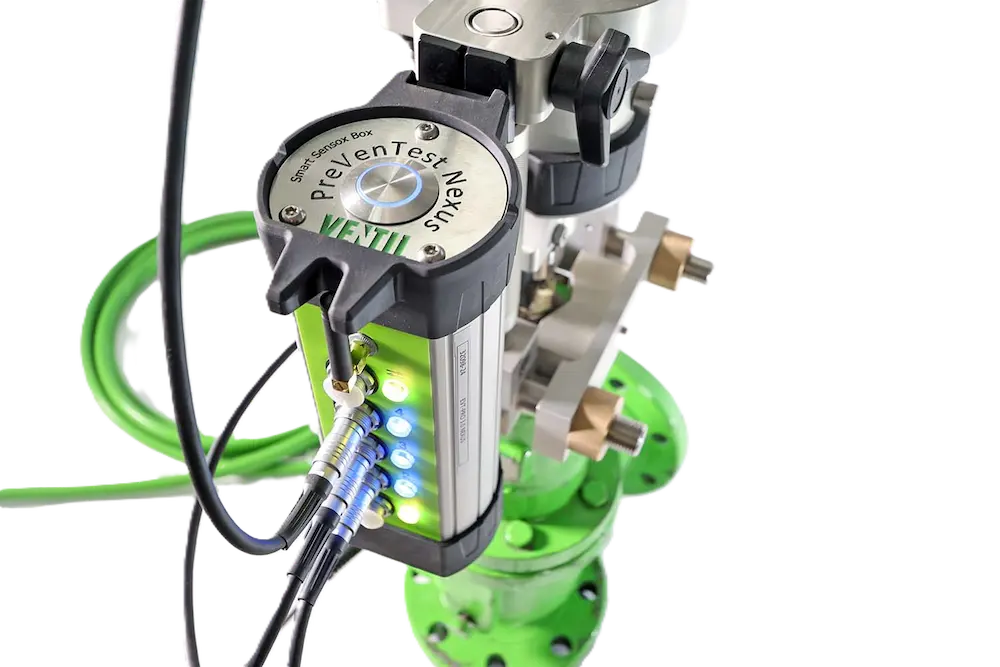

Nexus_815A0858_LR_transparant

Optional Systems

Expand your Setup

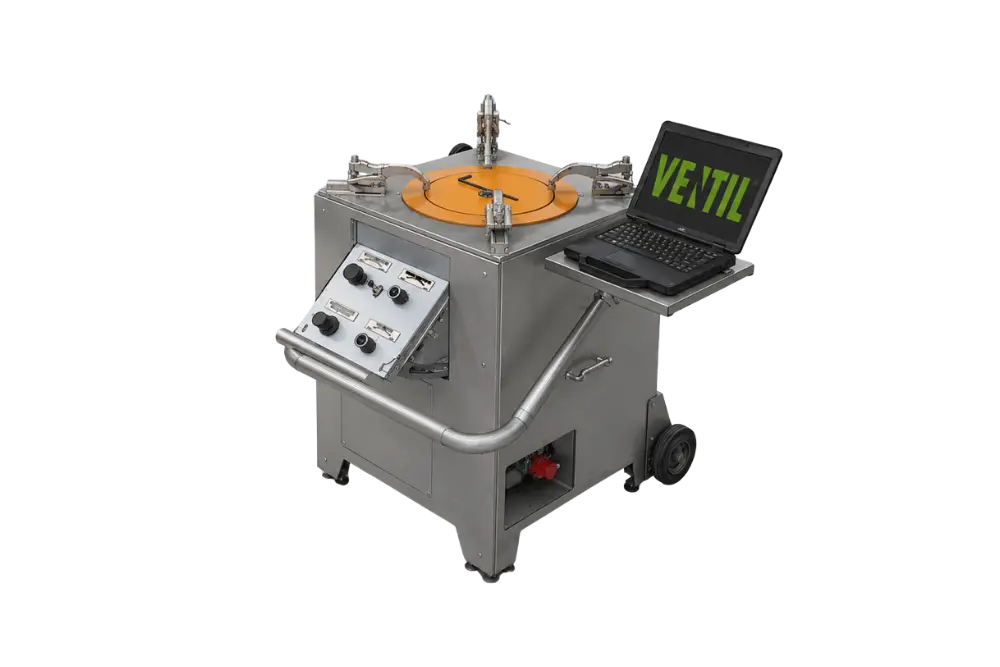

PROVENT-12

ProVent CT12

Pressure vacuum relief valves, mobile

Valve Range: 2"-12" (DN50-DN300)

Clamping Force: 10 ton

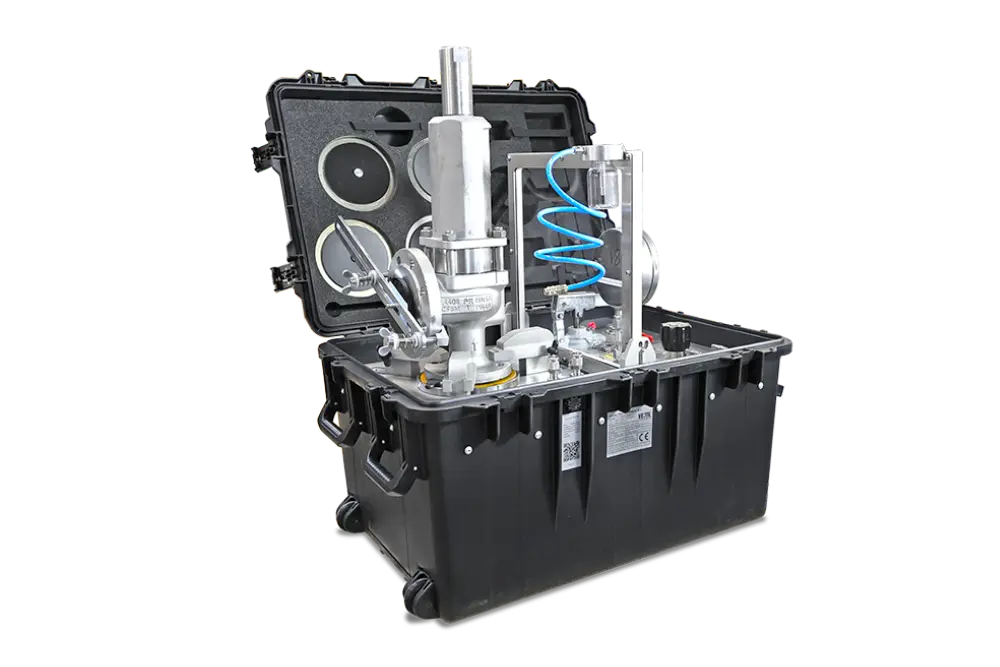

VC7.5

VC7.5 Xtreme

Pressure relief valves, portable

Valve Range: 1/2"-4" (DN15-DN100)

Clamping Force: 7.5 ton

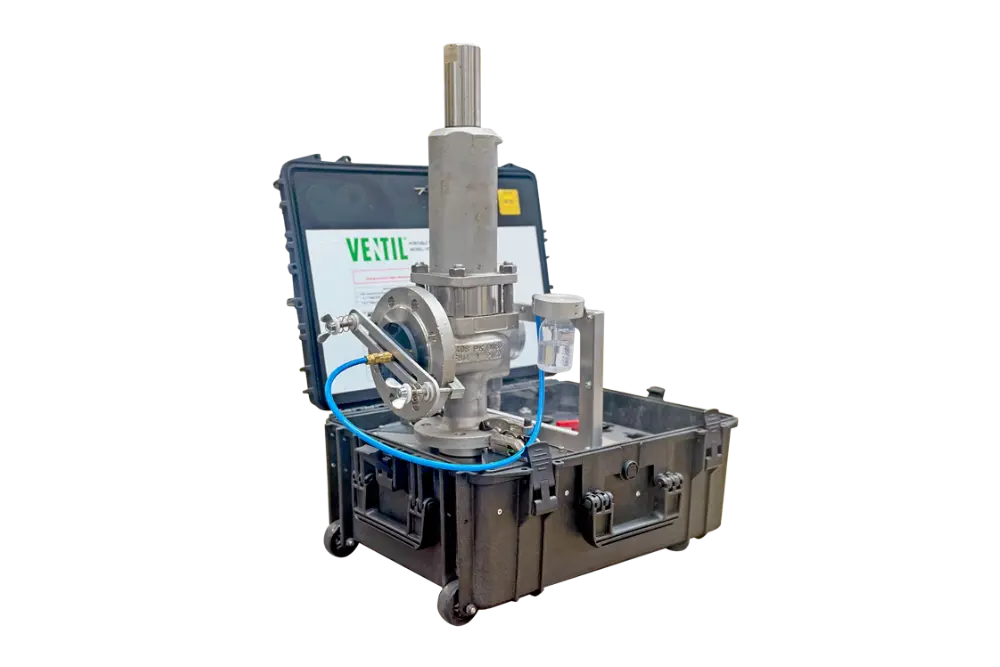

VC2

VC2

Pressure relief valves, portable

Valve Range: 1/2"-2" (DN15-DN50)

Clamping Force: 2 ton
