VC7.5 Xtreme

Pressure relief valves, portable
Hydraulic clamping station
Durable hard-shell trolley case
Every essential tool included

General Purpose

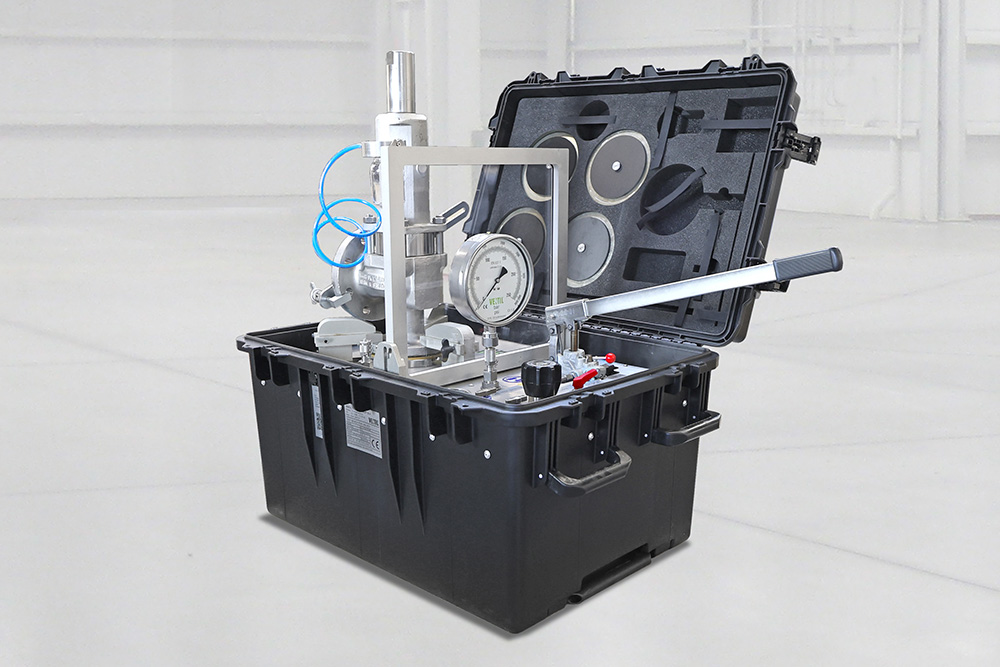

The VC7.5 is a universal and versatile test bench designed for the pressure testing and calibration of pressure relief valves. Fully self-contained, the system operates completely off-grid as no electricity or shop air is required.

Housed in a watertight, crushproof trolley case, the VC7.5 is built for easy transport and reliable performance in remote locations and harsh environments. Its rugged design makes it the ideal solution for on-site testing wherever dependable valve verification is required.

Specifications

Size Range: 1/2"-4" (DN15-DN100)
Max Set Pressure: Up to 200 bar (2,900 psi)
Clamping Force: 7.5 ton
Test Medium: Gas
Test Standards: API 526, API 527, EN ISO 4126, PED 2014/68/EU
Safety Features: Safety screen, Clamping station interlock

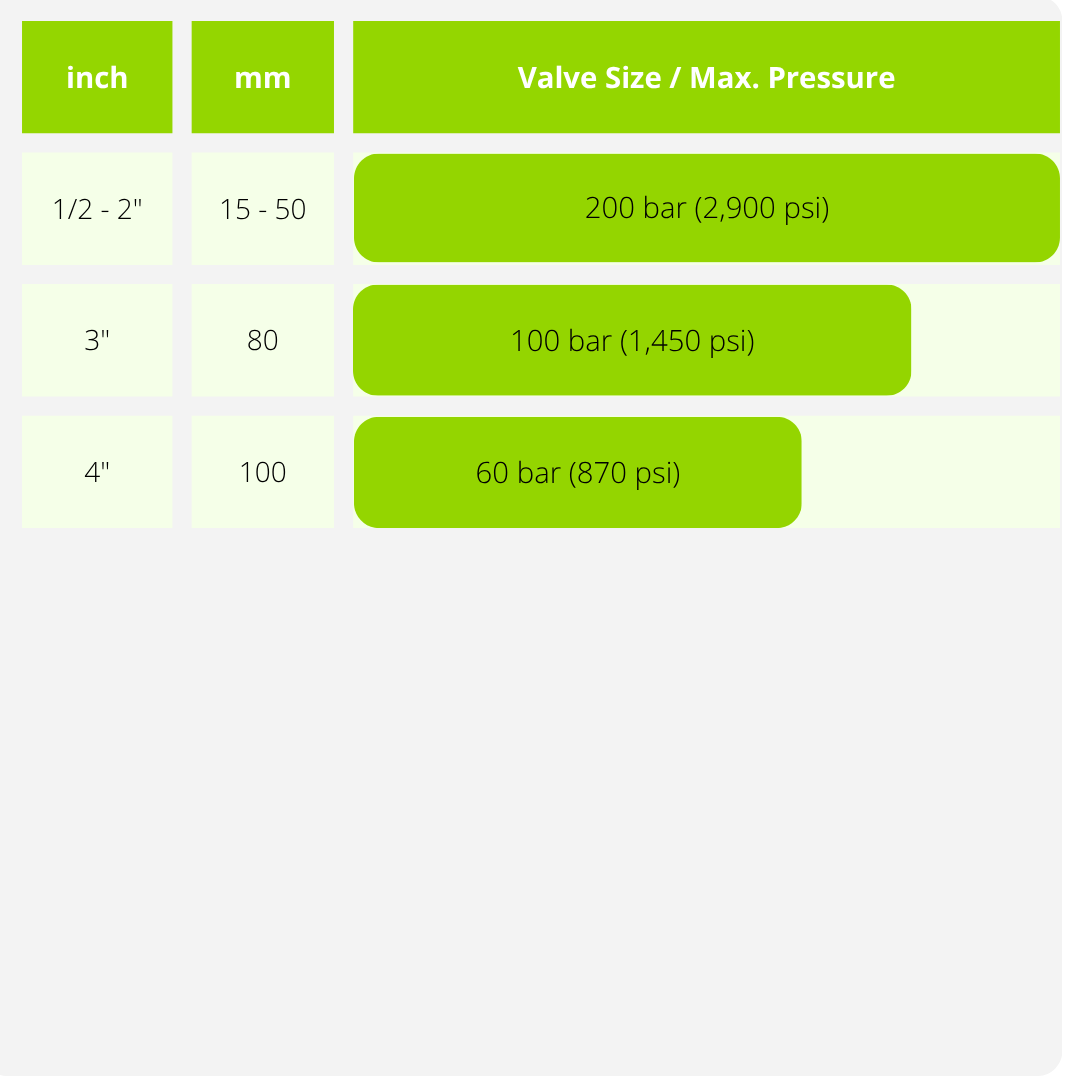

TABLE VC7.5-Xtreme
