Product Selector

VC25-SRV

Pressure relief valves
Safety Enclosure included as standard
Easy to operate
Full stainless steel control panel

General Purpose

The VC25-SRV is our benchmark single-station test bench for Pressure Relief Valve testing.

A reliable workhorse: rugged, no-nonsense, and built for consistent performance, test after test. Equipped with an advanced Computer Registration System (CRS), it records every test with precision. Dedicated Ventil software, featuring a comprehensive valve database and multi-language support, ensures efficient operation.

Built to international standards, the VC25-SRV delivers secure data management, certification-ready reporting and full traceability.

VC25-SRV-MP2_01
General_VC_1000x667px_815A9919
General_VC_1000x667px_815A9914

Specifications

Size Range: 1/2"-10" (DN15-DN250)
Max Set Pressure: Up to 300 bar (4,350 psi)
Clamping Force: 25 ton
Test Medium: Gas, Liquid
Test Standards: API 526, API 527, EN ISO 4126, PED 2014/68/EU
Safety Features: Safety enclosure (SPL2), Two-hand operation, Warning light
Remarks:

Higher test-/set pressures available upon request.

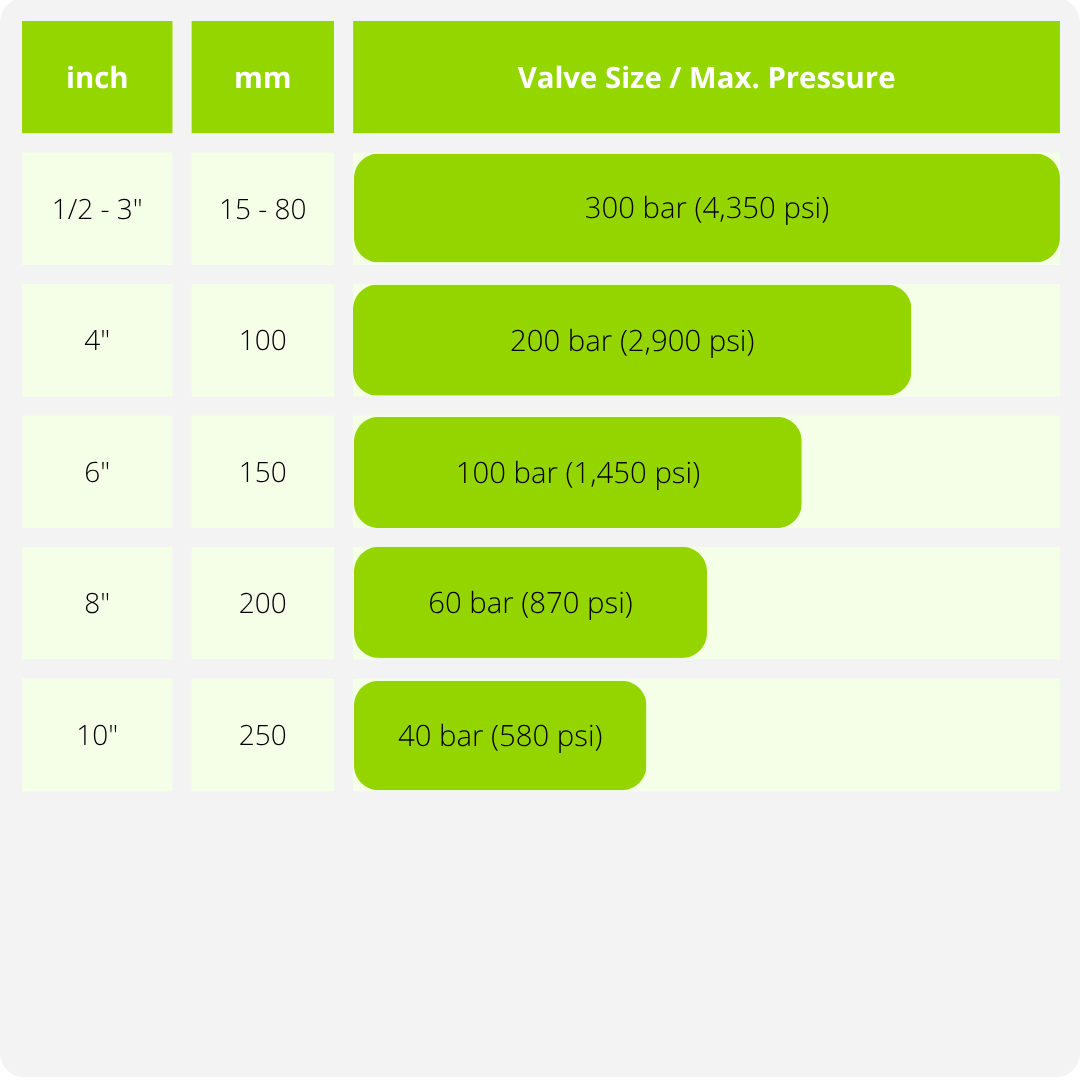

TABLE VC25-SRV

Optional Systems

Request for Quotation

Expand your Setup

CT800
ProVent CT800
Pressure vacuum relief valves, transportable
Valve Range: 1/4"-24" (DN6-DN600)
Clamping Force: 10 ton
Explore Features
PROVENT-12
ProVent CT12
Pressure vacuum relief valves, mobile
Valve Range: 2"-12" (DN50-DN300)
Clamping Force: 10 ton
Explore Features
