Polir F6

Portable valve seat resurfacing tool
In-situ grinding and lapping
Battery driven
Light weighted

General Purpose

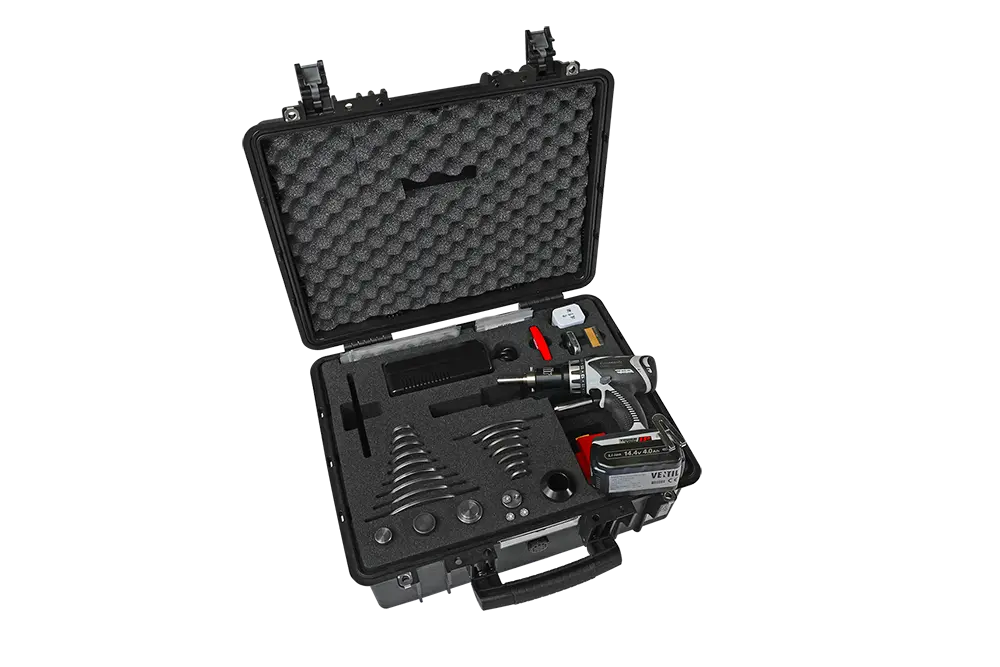

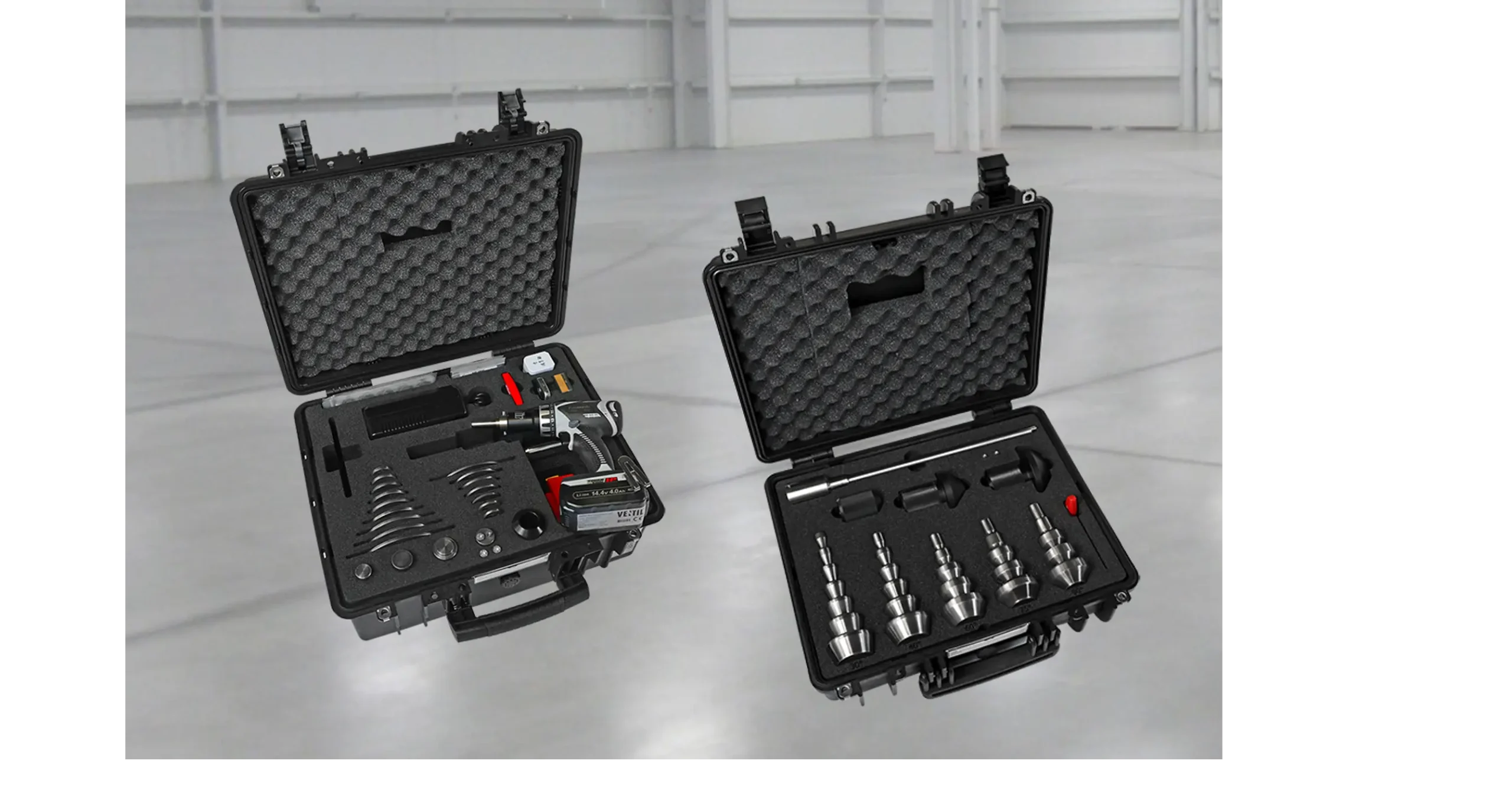

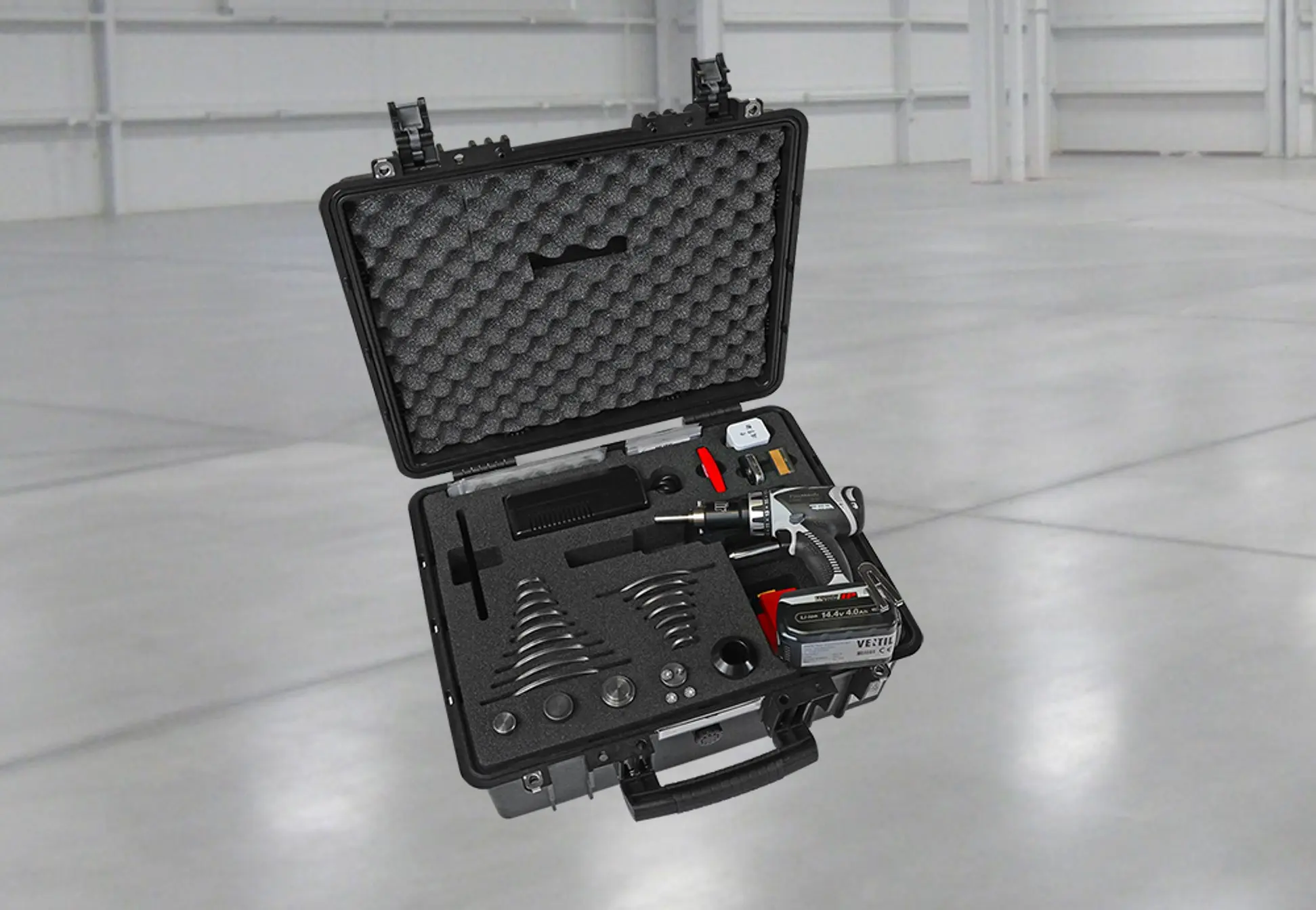

The Polir F6 is a lightweight, battery-powered machine for repairing and reconditioning the metal seats and sealing surfaces of all common shut-off valves and pressure relief valves. Designed for both on-site and workshop use, it is suitable for all common seat materials and is supplied ready for use in a durable carrying case.

The Polir F6 comes complete with grinding and guiding plates for flat valve seats from ¼" to 6" (DN6–DN150). The guiding plate and ball joint ensure quick and accurate alignment, while the eccentric orbital grinding motion produces a uniform crosshatch finish and excellent seat flatness for reliable sealing performance.

Specifications

Size Range: 1/4"-6" (DN6-DN150)
Function: Grinding, Lapping
Compatible Valve types: Gate, Globe, Check, Control, PRV
Application: In-situ, In-shop
Power Supply: 14.4V – 4.2 Ah

Configuration

Expand your Setup

VC25-SRV
VC25-SRV
Pressure relief valves
Valve Range: 1/2"-10" (DN15-DN250)
Clamping Force: 25 ton
VC25CC_1000x667px_815A0784_A_transparant
VC25-CC
Pressure relief valves, transportable
Valve Range: 1/2"-10" (DN15-DN250)
Clamping Force: 25 ton
VC2
VC2
Pressure relief valves, portable
Valve Range: 1/2"-2" (DN15-DN50)
Clamping Force: 2 ton
