Nomad CT20-3 DNV/ATEX

Test and repair of pressure relief valves

High Cube (double door) design

Offshore / FPSO use

DNV / ATEX certified

General Purpose

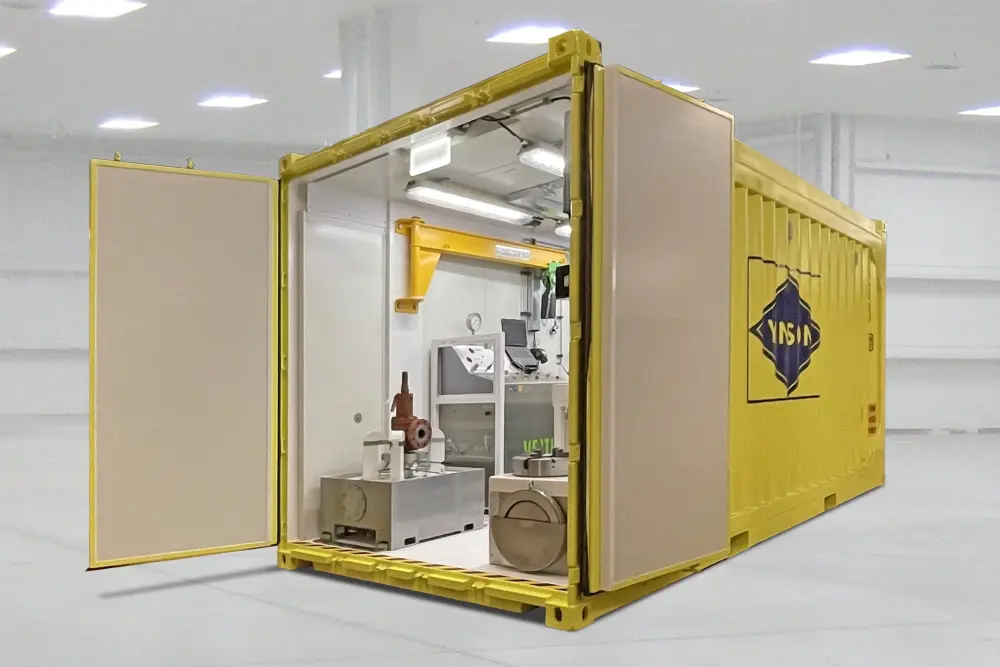

The CT20-3 is a fully equipped 20 ft High Cube containerized workshop for the on-site repair and overhaul of all common pressure relief valves. It includes all essential tools and equipment to perform efficient valve maintenance while minimizing plant downtime.

We are a highly specialized manufacturer of Valve Repair & Test containers DNV/ATEX certified for Offshore or FPSO use.

Our goal is to fully support EPC teams- providing expert knowledge, complete equipment solutions, detailed technical and commercial proposals, and comprehensive project documentation.

Specifications

Container Size: 20 ft

Container Type: High Cube (double door)

Application: Testing and Repair

Valve Type: Pressure Relief Valves

Valve Size: 1/2"-10" (DN15-DN250)

Configuration

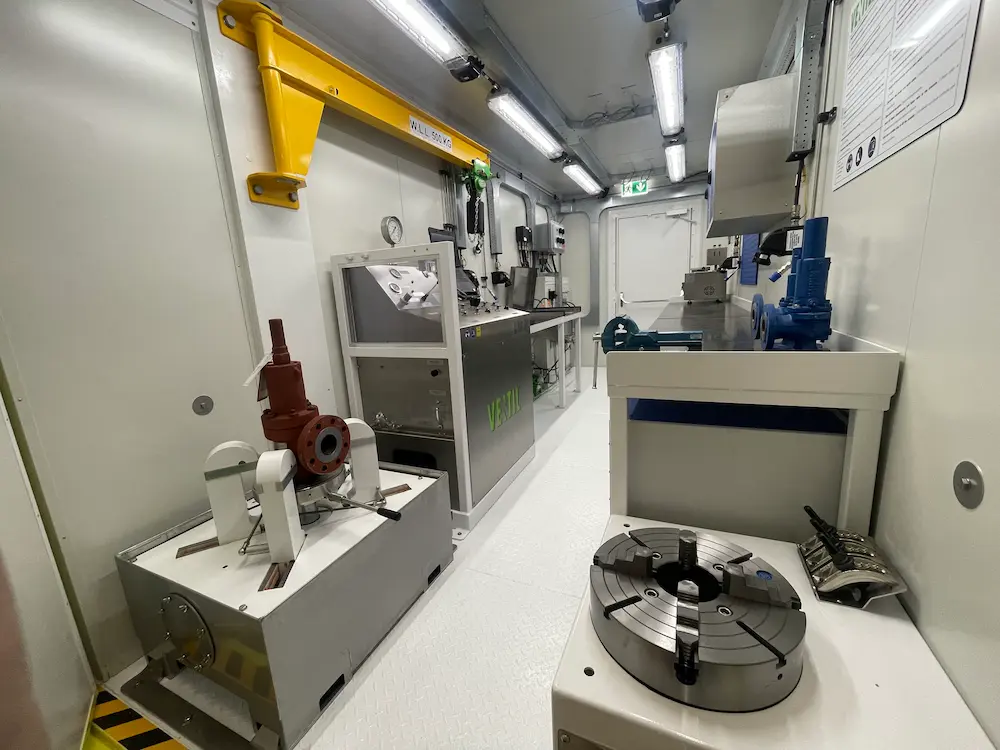

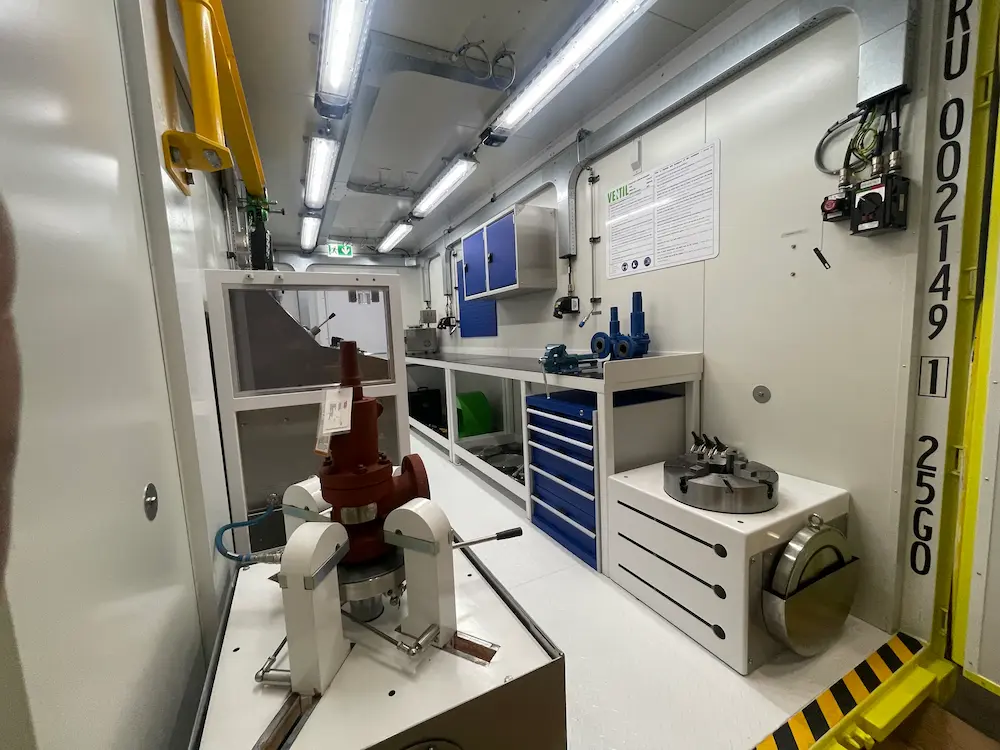

Workshop Equipment

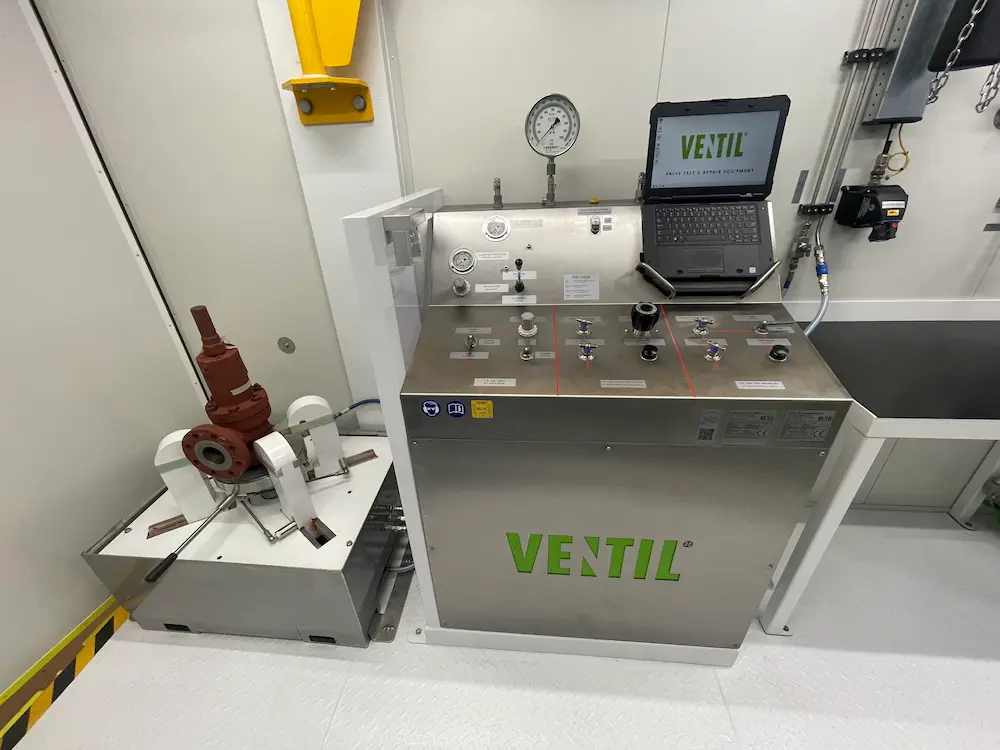

Pressure Relief Valve Test bench model: VC40-CC
Valve range: ½”- 12” (DN15-DN300)
Set pressure: up to 600 bar (8.700 psi)
Computer Registration System
Adapters for RF, RTJ flanges & threaded ends
Tank Relief Valve test bench model: CT800-CC
Nozzle remover
Lapping and polishing machine
Monochromatic light

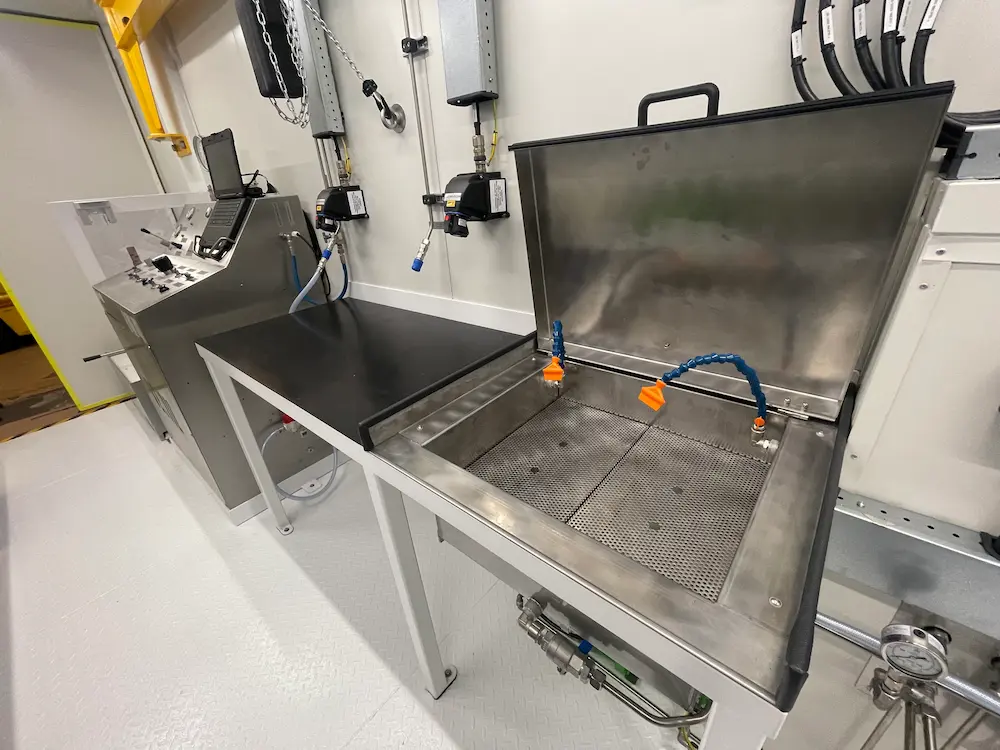

Cleaning cabinet
High pressure gas booster & storage

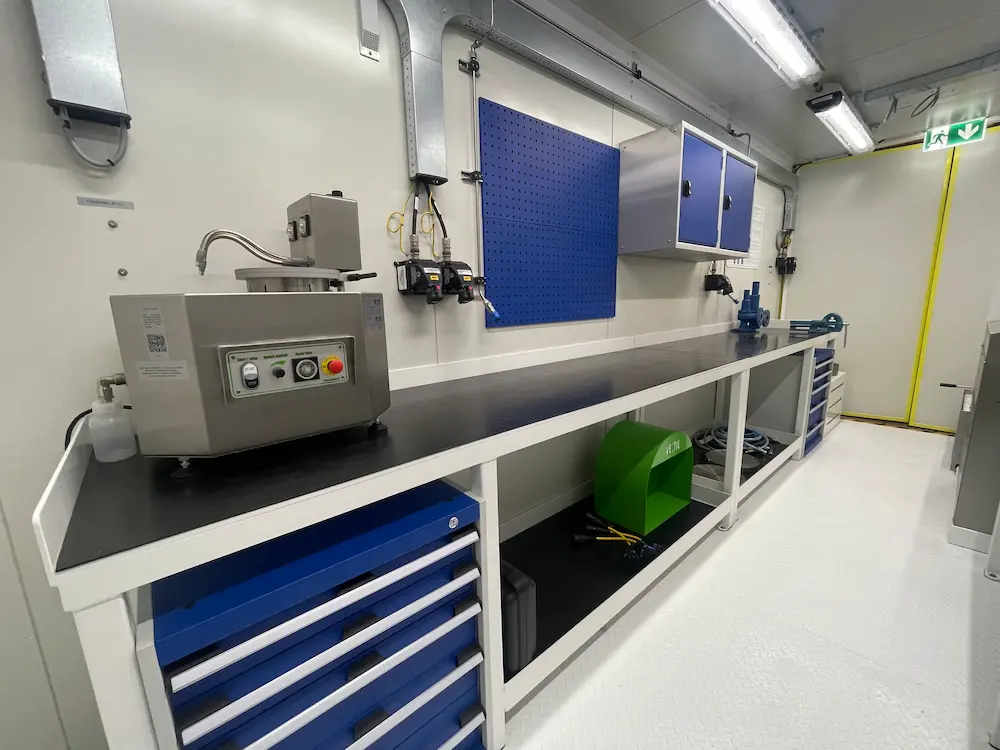

Workbenches, storage cabinets & tool kit
Workshop jib crane (500kg.)

Container Utilities and Safety

Container certifification: DNV-ST-E271 2.7-1

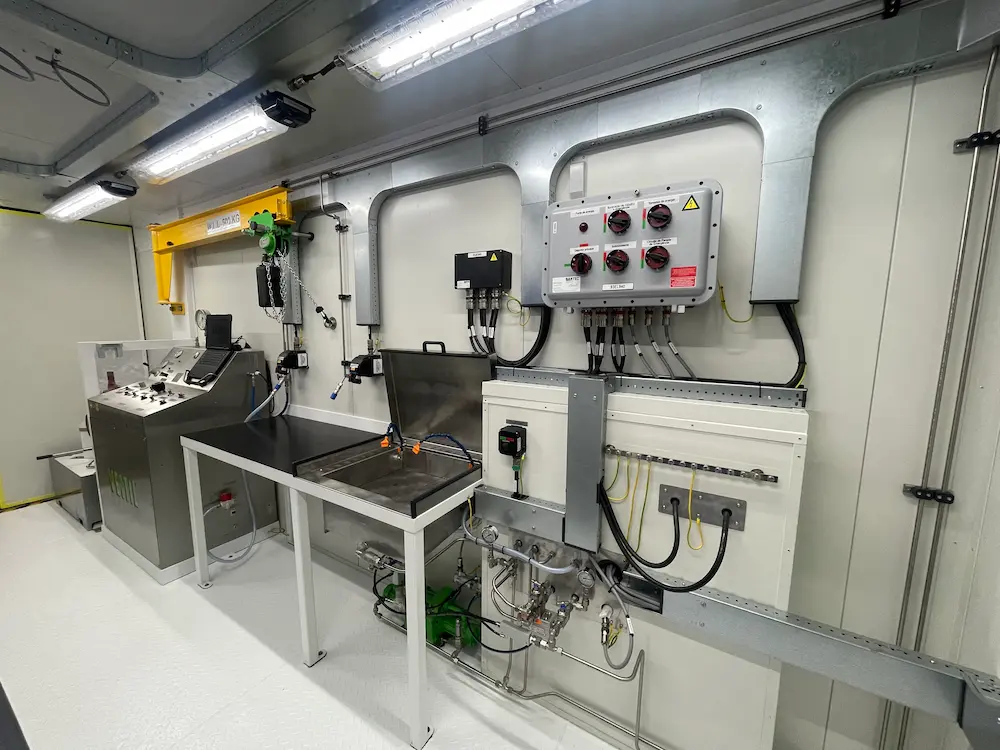

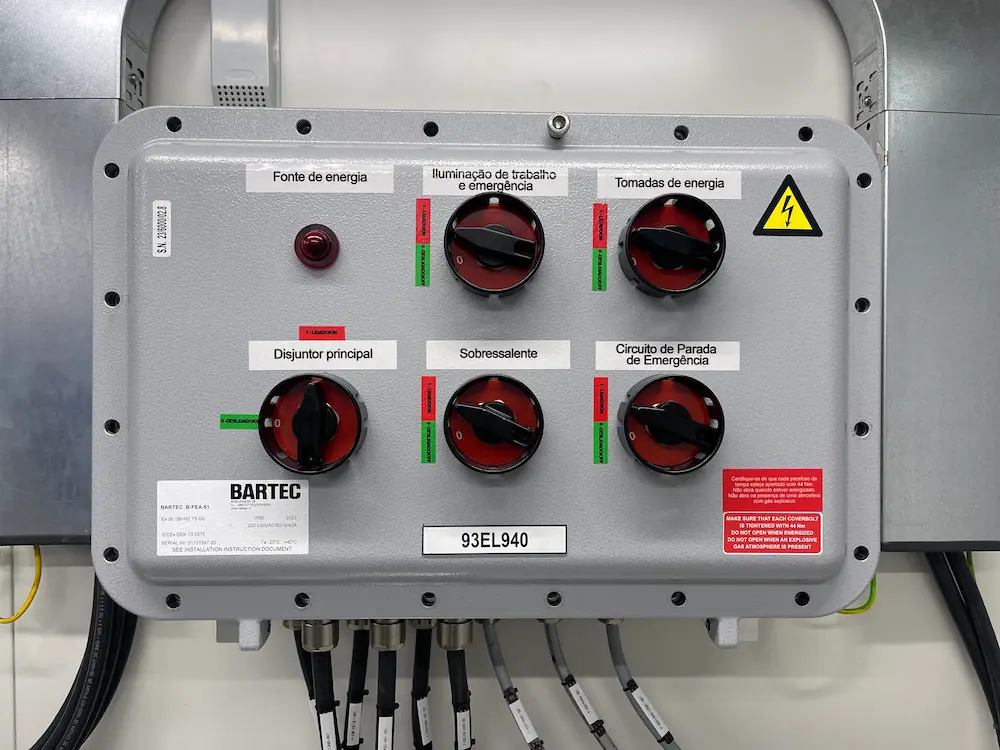

Electrical Installation: IECEx / ATEX / Hazardous Operation IIB T3
Explosion proof LED lightning with EX back-up
E-stop, gas/heat/fire detection, beacon/sounder
Safety signs/instruments as per user requirement
Emergency Exit
Isolation: 50 mm, Rockwool
Offshore coating: inside & outside
Components: marine graded (SS316)
ATEX HVAC air-conditioning system
